Battery-free LED scooter wheels with 608 bearings combine a polyurethane wheel, hub, bearings, spacer or magnetic generator and LEDs into one small assembly. For B2B buyers, most quality disputes happen when a quotation names only the diameter and “LED wheel” while leaving the interface, light test, included hardware and inspection criteria undefined.
This OEM quality checklist shows how to compare suppliers, approve samples and prepare a repeatable purchase order for light-up scooter and skate wheels.
How Magnetic-Induction LED Wheels Work
A generator uses wheel rotation and magnetic interaction to supply current to the LEDs. There is no replaceable battery in this configuration. The visible effect depends on rotation speed, generator fit, LED arrangement and ambient light. A sample spin test should therefore be part of approval.
608 Bearing and Wheel Assembly Checklist
| Item | What to specify | Common omission to avoid |
|---|---|---|
| 608 bearing | 8 × 22 × 7mm nominal size, closure, quality and lubrication | Listing only an ABEC claim without closure or supplier reference. |
| Bearing seat | Diameter, width, fit and moulded-core tolerance | Assuming every 22mm seat gives the same retention. |
| Internal spacer/generator | Length, material, orientation and axle relationship | Leaving the spacer out of the quotation or retail set. |
| Axle | Diameter, usable length, shoulders, washers and tightening method | Calling the 22mm bearing OD the axle size. |
| Hub width | Total assembled width and wheel-centre offset | Checking tread width only. |
| Rotation | Free-spin reference, installed torque and side clearance | Testing loose on a bench but not on the target equipment. |
For a complete replacement assembly, compare the 100mm light-up wheel with 608 bearing programme and specify whether bearings, the generator or spacer and axle hardware are included.
Quality Plan for PU, Core and Lighting
Dimensions and concentricity

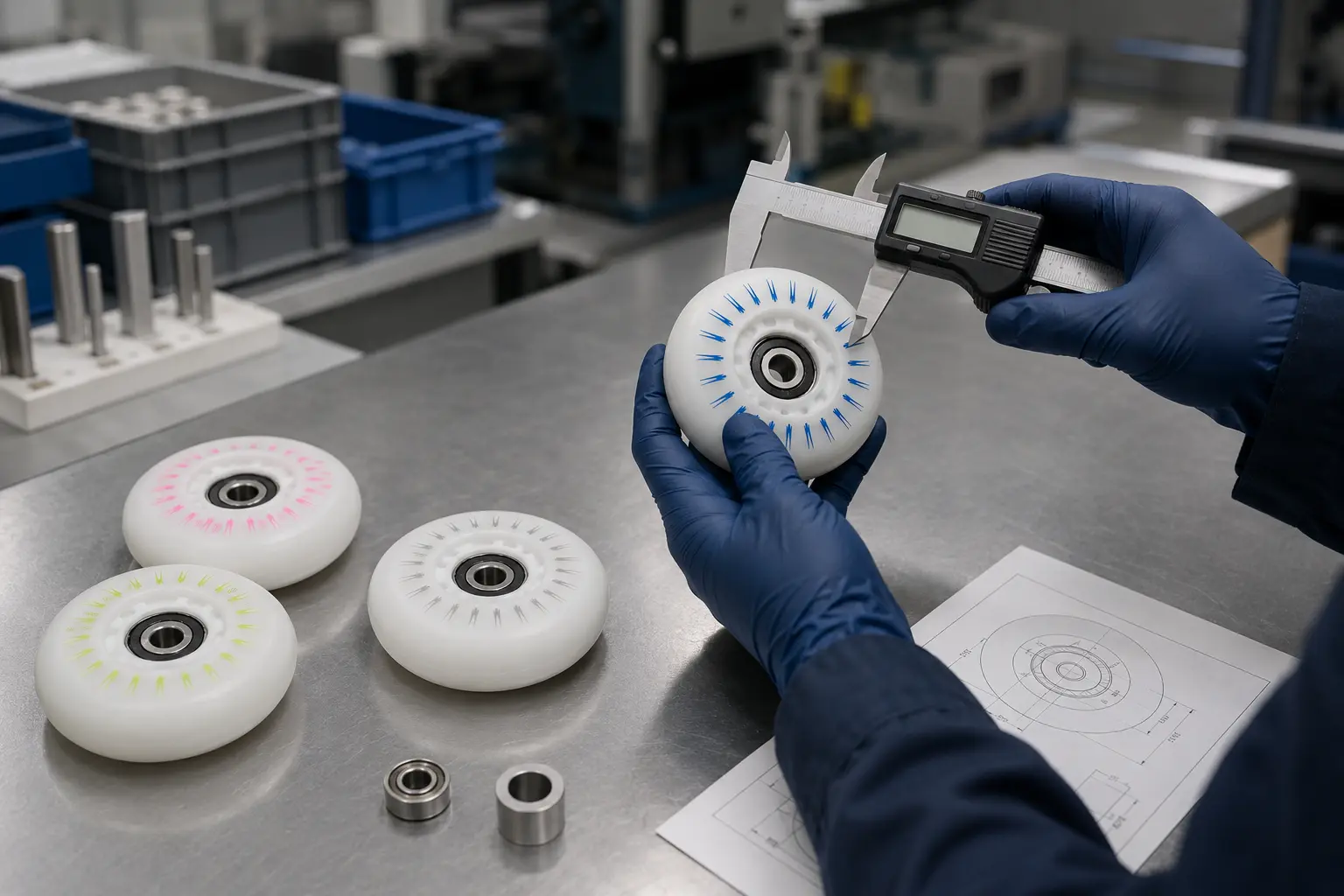

Measure diameter, wheel width, hub width, bearing seat and any offset against the drawing. Rotate the assembled wheel to identify binding, excessive runout or contact with the frame/fork.
PU hardness and appearance
State the Shore A method and tolerance. Compare colour and translucency with the approved sample under consistent lighting. Define unacceptable bubbles, marks, contamination or print defects.
Core and PU bonding
The core geometry and bonding interface are part of the engineered wheel. Agree any destructive or functional test required for the programme rather than relying on a visual check alone.
LED spin response
Use an agreed fixture or representative equipment. Record whether all LEDs operate and how the approved colour sequence appears over the selected speed range.
Hardness, Rebound and Abrasion Data
Hardness values such as 82A, 85A or 90A are useful model identifiers, but they do not predict every field result. If high rebound is a purchase requirement, state the rebound test, specimen and minimum result. If wear is critical, agree an ISO 4649 abrasion method and acceptance value. Laboratory abrasion is a comparative result, not a direct mileage guarantee.
Complete scooter or skate load capability must be validated by the equipment manufacturer. The wheel supplier needs the intended load, wheel count, speed, surface, impacts and duty cycle, but a generic kilogram number should not be copied across unrelated wheel designs.
For inline wheel development, the high-rebound PU wheel programme and wear-evaluation wheel programme show how to separate these buying requirements. Their application and fit still need their own approval.
Supplier Comparison Table for Importers
| RFQ line | Supplier must declare | Buyer approval evidence |
|---|---|---|
| Exact wheel SKU | Diameter, width, profile, hardness and core | Drawing and labelled physical sample. |
| Assembly scope | Wheel-only, bearings, generator/spacer and hardware | Bill of materials and pack photo. |
| Light effect | LED count/colour direction and battery-free system | Approved spin sample or video under stated conditions. |
| Testing | Method, specimen, sampling and acceptance limit | Report tied to the quoted model/batch where required. |
| OEM appearance | Colour, authorised print, barcode and labels | Artwork proof and golden sample. |
| Commercial terms | MOQ by SKU, tooling, sample time, lead time and packing | Written quotation with exceptions clearly stated. |
Recommended Sample-Approval Sequence
- Check the drawing and bill of materials before the sample ships.
- Measure the sample and record the bearing/spacer/axle arrangement.
- Install it on the target equipment; check clearance, rotation and light response.
- Compare hardness, appearance, logo and retail packaging.
- Complete any agreed rebound, abrasion or environmental test.
- Sign and retain the approved sample plus specification revision.
Choose a Product Route
- 100mm light-up wheels with 608 bearings
- 110mm LED wheels for 3-wheel inline skates
- 120mm LED scooter front replacement wheels
- 120mm front + 80mm rear wheel set
- 125 × 24mm transparent PU flashing wheels
- custom light-up scooter wheel manufacturer programme
Compare the full PU skate and scooter wheel selection or use the inline skate frame and application guide when specifying an inline wheel set.
Battery-Free LED Wheel FAQ
Do magnetic-induction wheels need charging?
No replaceable battery or charging is used in the described generator configuration; rotation powers the LEDs.
Is every 608 bearing interchangeable?
The nominal envelope matches, but closure, quality, lubrication and the complete wheel/spacer fit can differ.
Can the supplier promise a fixed LED life?
Only against defined components, conditions and an agreed test. Use sample and batch inspection instead of a vague universal promise.
What should be inspected before shipment?
Dimensions, hardness, moulding/print appearance, bearing and spacer fit, rotation, light function, pack count, labels and carton marks.
Compare the full light-up scooter wheel range or read the 100–125mm size selection guide.
Turn the Guide into a Comparable RFQ
Send one model-specific RFQ with the drawing, 608 bearing and spacer details, light-function requirement, PU hardness, test plan, artwork, packing and quantity.
