Glass Door Pull Handles

Glass door pull handle manufacturer and China supplier for importers and distributors. Compare sizes, finishes and OEM options; request a project quote.

Manufacturer support from China includes stainless steel glass door pull handle wholesale and made-to-specification projects with drawing review, sample approval, complete fixing kits and export packing.

Choose common production sizes or request custom overall lengths and mounting centers. SS304 and SS316 options can be specified for the installation environment, with paired fixing components matched to the glass preparation.

Use the selection table below to compare applications and technical requirements. For an OEM quotation, send the style, dimensions, glass thickness, finish, quantity and packing details. Drawings or reference samples help define special configurations and repeat orders.

Choose a Handle for Your Application

Handle family Choose it for Key details to specify
Round H-style A repeatable SS304 back-to-back range for importers and wholesalers Mounting centers, paired fixing kit and finish

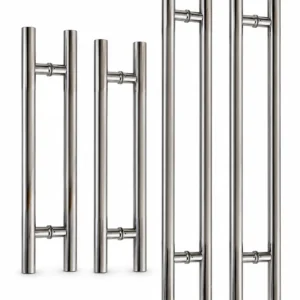

Straight ladder pull Commercial entrances and coordinated door schedules Overall length, tube diameter and mounting layout
1200 mm long pull Lobby, villa and tall entrance doors 1200 mm overall length, separate C-to-C and protective packing
Custom hole pitch Replacement projects and fixed existing glass holes Actual C-to-C, hole diameters and glass drawing

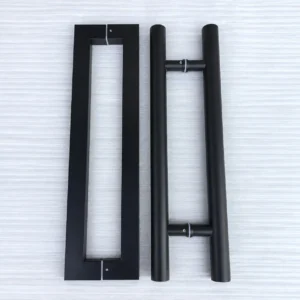

Matte black H-style Matching black architectural hardware collections Colour, gloss sample and compatible mounting centers
Square tube Geometric bathroom and partition hardware Square section, projection and door clearance

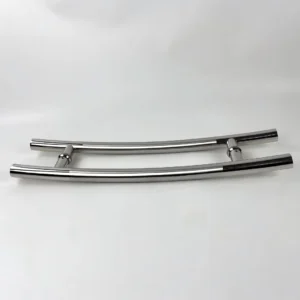

Curved / bow / wave Office and hotel projects with a shaped grip Curve, usable grip space and mounting positions
Frameless shower Shower enclosures and hotel bathroom ranges Short mounting centers, wet-use material and enclosure clearance

Glass Door Pull Handle Styles and Sizes

Selection requirement Handle option Suitable applications
Offset / cranked clearance Offset cranked glass door pull handle Asymmetric grip and clearance-sensitive entrance projects
Commercial U-shaped pull U shaped glass door pull handle Project-size rounded loop for entrances and partitions
600 / 800 / 1000mm size Multi-size glass door pull handle series Coordinated 600, 800 and 1000 mm pulls for commercial door schedules
Common Size Options and Custom Manufacture

Use these common production options to start your enquiry. The individual model page shows the sizes relevant to that family.

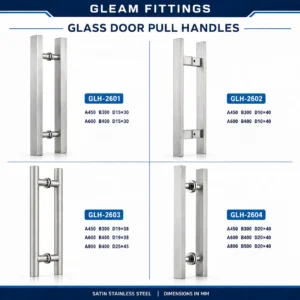

Common dimensions across the handle range
Specification Production options
Commercial mounting centers (C-to-C) 300, 400, 450 and 600 mm, depending on handle style
Short shower mounting centers 6 in (152.4 mm) and 8 in (203.2 mm)
Long ladder pull overall length / C-to-C 600 / 440 mm; 1000 / 840 mm; 1200 / 1040 mm
Round tube diameter 19, 25 and 32 mm, depending on model
Square tube section 19 × 19 and 25 × 25 mm
Glass thickness 8, 10 and 12 mm with the corresponding fixing kit
Special requirements Custom overall lengths, hole pitches, profiles and finishes

Specify overall length and C-to-C separately. Imperial dimensions are exact conversions, not automatic substitutes for rounded metric sizes. Confirm the selected combination, glass-hole diameter and fixing kit on the order drawing.

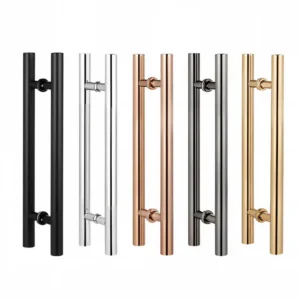

Brushed Satin or Polished Finish: Compare Real Handle References

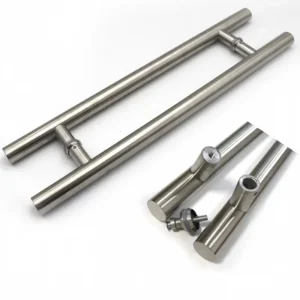

For a satin stainless glass door pull handle request, review the brushed satin ladder pull reference and specify the visible grain direction, mounting-post finish and an approved appearance sample. For a polished stainless glass door handle, compare the polished round H-style reference. These photographs show finish and shape references, not proof of material grade or a guarantee that every dimension is available in both finishes.

Include the handle style, overall length, C-to-C, glass thickness, fixing-kit contents and finish sample in the enquiry. Confirm the surface process and final appearance for the selected configuration before production.

OEM Glass Door Pull Handles: Samples and Quality Checks

When comparing a glass door handle manufacturer or factory quotation, use the same approved drawing and complete-set specification. Confirm these points before placing a wholesale or custom order:

  • Drawing and material review: state overall length, C-to-C, glass thickness, hole diameters, material grade and finish. Specify tube wall thickness when it is part of the purchasing requirement.
  • Complete fixing kit: agree the quantity of grips, mounting posts, bolts, sleeves and washers supplied per set. Match the fixing kit to the prepared glass.
  • Sample approval: check dimensions, grip clearance, assembly and surface appearance against the agreed specification before confirming repeat-order requirements.
  • Inspection and packing: agree the dimension, finish, quantity and fixing-kit checks, required records, individual protection and carton marking in the quotation. State any project test or material-document requirements for confirmation.

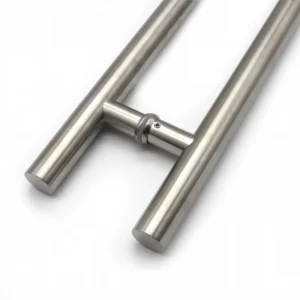

View mounting collar and fixing screw photo

Fixing reference: confirm mounting centers, glass preparation and the complete fixing kit against the approved drawing.

View protective foam packing photo

Packing reference: a polished pull-handle pair supported on protective foam. Confirm protection, set identification and carton requirements for the quoted order.

Prepare the Fit and Material Specification

Request an OEM Handle Quotation

Send the selected style, overall length, C-to-C, glass thickness, material, finish and quantity of complete sets. Include a drawing or sample reference for custom work, plus packing and destination requirements.

Request Handle Range Quotation
