Standard glass door handle sizes are usually described with more than one number: overall length, center-to-center (C-to-C) mounting distance, tube diameter or section, projection and the glass interface. A buyer who sends only “600 mm handle” may receive the wrong drilling pattern even when the visible length looks correct.
This B2B size guide organizes common production options for importers, distributors, glass-door fabricators and project procurement teams. The figures below are selection references—not universal dimensions for every door. Confirm the final handle drawing, fixing kit and prepared glass before production or installation.

Glass Door Handle Size Terms
| Term | What it measures | Why buyers must state it |
|---|---|---|
| Overall length | End-to-end visible length of the pull | Controls visual scale but does not identify glass-hole spacing |
| C-to-C / hole pitch | Distance between mounting-hole centers | Must match the approved drilling layout |
| Tube diameter / section | Round diameter or square/rectangular section | Defines the grip and construction, not the glass-hole diameter |
| Projection | Distance the handle extends from the door face | Affects hand clearance and collision with frames or adjacent panels |
| Glass interface | Glass thickness, hole diameter, sleeves, washers and bolt length | Determines whether the fixing set matches the prepared door |
For a measuring method and edge-to-edge cross-check, use the existing C-to-C hole-spacing guide. Use the measured hole positions and glass thickness to select a compatible handle and fixing kit.
Common Glass Door Pull Handle Sizes
| Use | Common production options | Selection note |
|---|---|---|
| Compact shower handle | 6 in / 152.4 mm or 8 in / 203.2 mm C-to-C | Confirm enclosure overlap, projection and fixing kit |
| Commercial pull | 300, 400, 450 or 600 mm C-to-C | Match the overall length and tube section to the selected model |
| Long architectural pull | 600, 800, 1000 or 1200 mm overall length families | Longer visible length does not establish door capacity |
| Round tube | Ø19, Ø25 or Ø32 mm | Specify finish, grade and wall/construction requirements separately |
| Square tube | 19 × 19 or 25 × 25 mm | Coordinate corner form, posts and architectural style |
| Glass thickness | 8, 10 or 12 mm | Use the corresponding sleeves, collars, washers and fastener length |

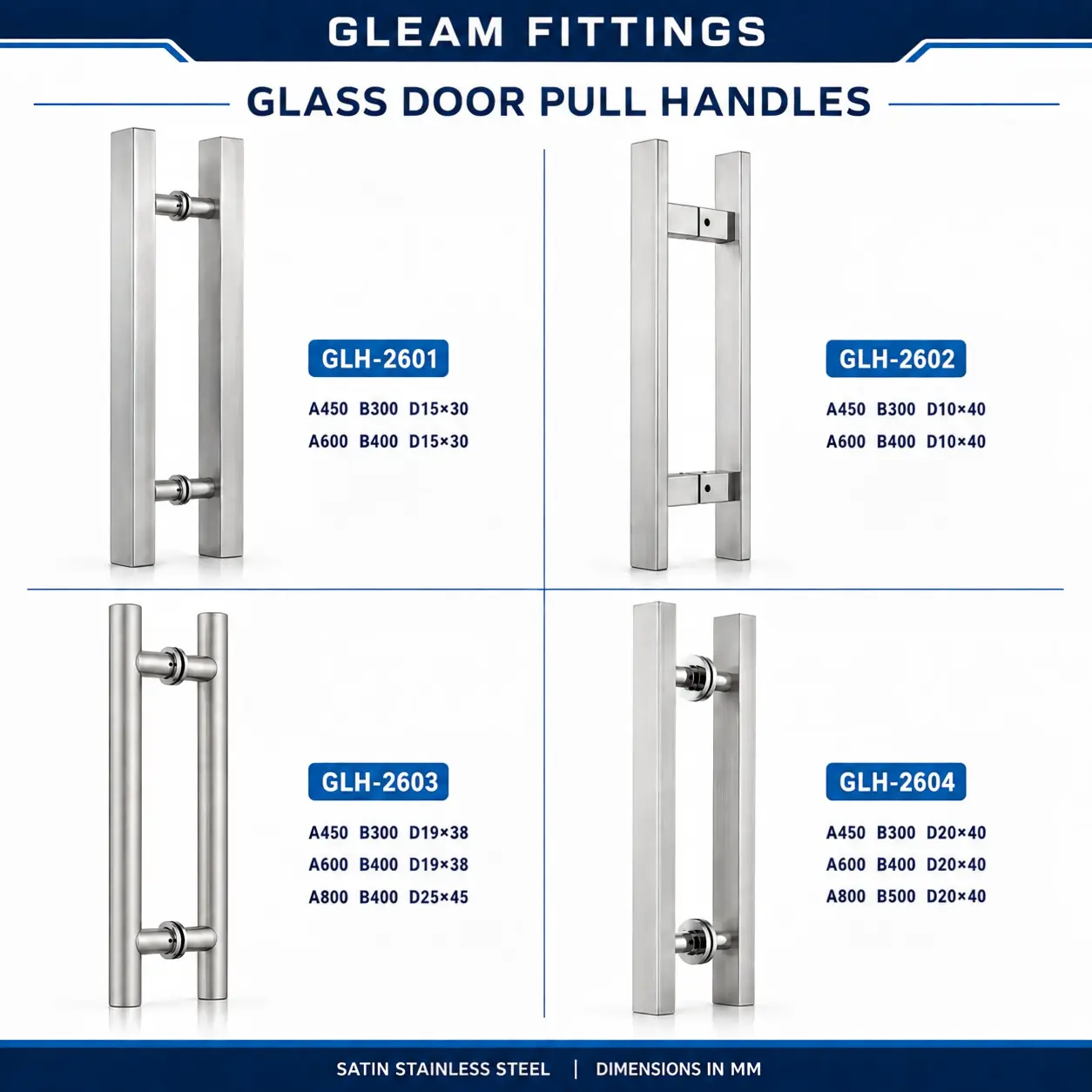

Model Chart: Overall Length and C-to-C
| Model | Overall length A | C-to-C B | Printed section D |
|---|---|---|---|
| GLH-2601 | 450 or 600 mm | 300 or 400 mm | 15 × 30 mm |
| GLH-2602 | 450 or 600 mm | 300 or 400 mm | 10 × 40 mm |
| GLH-2603 | 450, 600 or 800 mm | 300, 400 or 400 mm | 19 × 38 mm; 25 × 45 mm on the 800/400 option |
| GLH-2604 | 450, 600 or 800 mm | 300, 400 or 500 mm | 20 × 40 mm |
Read each row as a model-specific combination. Do not mix the A, B and D values from different rows without a new drawing review. For 1000 and 1200 mm long pulls, 1000/840 and 1200/1040 mm overall/C-to-C combinations are available for project review.
Compare Handle Products for Your Size Schedule
Use the size chart above to shortlist a product, then confirm the model-specific drawing. Overall length, C-to-C, glass-hole diameter and glass thickness are separate ordering dimensions.
600 / 800 / 1000 mm Pull Handle Series
Compare overall lengths, mounting centres and tube options. List the required length and C-to-C separately for each model and quantity.
1200 mm Architectural Pull Handles
For long entrance-door pulls. Confirm overall length, hole pitch, projection, glass thickness and the approved fixing kit for your project.
U-Shaped Commercial Pull Handles
Check C-to-C, grip clearance and glass thickness. Specify the finish, mounting arrangement and quantity of complete sets.
Already-drilled glass or a mixed size order? Include the measured hole centres and hole diameters, glass thickness, finish and quantity by model in your size schedule.
Choose Glass Door Pull Handles by Size and Application
- 600, 800 or 1000 mm straight pull: use the multi-size glass door pull handle series.
- 1200 mm long architectural pull: use the 1200mm project handle page.
- Commercial rounded loop: use the U shaped glass door pull handle.
- Offset hand clearance: use the offset cranked glass door pull handle.
- Existing prepared holes: use the custom hole-pitch handle.
- Compact bathroom enclosure: use the frameless shower handle.
Compare the models above by size, clearance and installation requirements. Browse the complete glass door pull handle range for the selection table.
Size Checklist for an OEM Enquiry
- State whether each quoted number is overall length, C-to-C, projection or tube section.
- Attach the door drawing with glass thickness, hole diameter, edge offsets and opening direction.
- Identify material grade, visible finish and the sample or standard used for appearance approval.
- Define a complete set: paired grips, posts, collars, sleeves, washers, bolts and spares.
- List quantity by model and size, individual protection, carton marking and destination.
For assembly steps and installer checks, continue with how to install a glass door pull handle.
Glass Door Handle Size FAQ
What is the standard glass door handle size?
There is no single universal size. Common commercial mounting centers include 300, 400, 450 and 600 mm, while compact shower handles often use 152.4 or 203.2 mm C-to-C. Select by the actual door drawing.
Is a 600 mm handle measured overall or center-to-center?
Either usage can appear in the market. Write the dimension name explicitly. In the shown model chart, 600 mm is overall length and 400 mm is C-to-C.
Can a 1000 mm pull fit existing 840 mm holes?
A 1000/840 mm overall/C-to-C combination is available for review, but fit also depends on hole diameter, glass thickness, posts, sleeves, washers and the approved fixing kit.
Can I include several handle sizes in one enquiry?
Yes. List each required size separately, with overall length, C-to-C, tube section, glass thickness, finish and quantity. Include the relevant drawing or model reference so the handle and fixing kit can be reviewed together.
