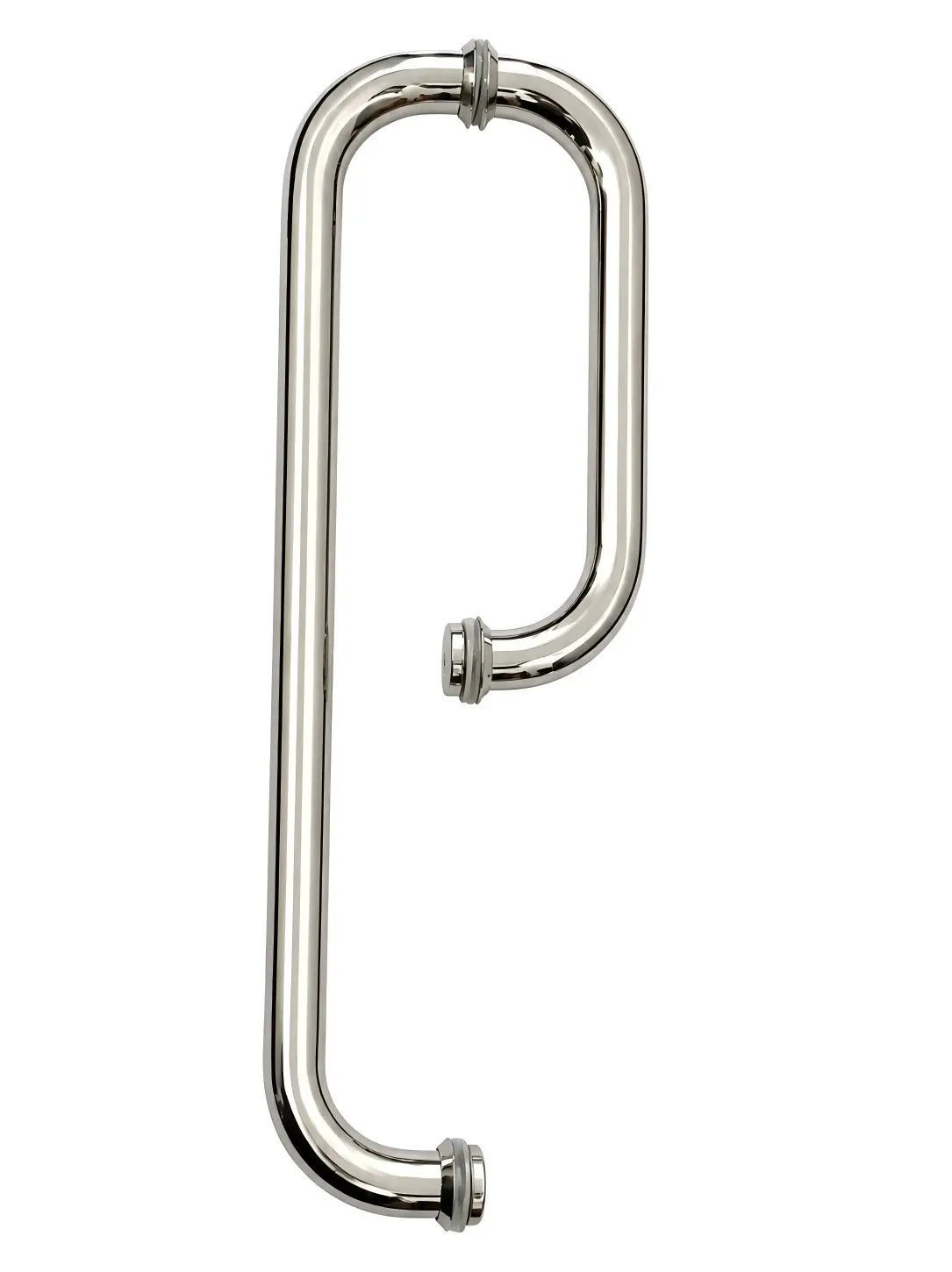

The frameless shower glass door pull handle family is intended for bathroom hardware importers, shower enclosure manufacturers and hotel project buyers. Qingdao Gleam Hardwares supports an OEM review of the rounded tubular design shown here, including the grip shape, mounting collars, material requirement and pack configuration needed for your enclosure range.
Compare all glass door pull handle styles and select the configuration for your project.
Common Sizes and Custom Options
These are made-to-order production options. Special lengths, mounting centers and profiles can be customised.
| Specification | Production options |
|---|---|
| Common shower C-to-C | 6 in (152.4 mm) or 8 in (203.2 mm) |
| Round tube diameter | 19 or 25 mm |
| Overall length and projection | Matched to the D-style or rounded profile and the enclosure clearance |
| Glass thickness | 8, 10 or 12 mm with the matching fixing kit |
Specify overall length and C-to-C separately. Confirm the selected length, mounting centers, glass holes and fixing kit together on the order drawing.
SS304 Frameless Shower Glass Door Pull Handle Supplier for OEM Programs
Specify SS304 when it is required by your buying standard, and confirm the final grade in the approved order. A polished surface does not identify the steel grade. Send the glass drawing and opening arrangement early so the handle can be checked together with seals, rollers, hinges and adjacent panels.
| Shower-handle requirement | Specification to confirm |
|---|---|
| Grip form | Rounded / D-style tubular pair as the design reference; choose matching or offset arrangement |
| Material | SS304 requested for this program; grade and fastener material confirmed per quotation |
| Overall size and C-to-C | Separate grip length, projection and mounting-center dimensions |
| Glass interface | Door thickness, prepared hole diameter, sleeves, collars and nonmetallic contact components |
| Door action | Hinged or sliding enclosure, panel overlap and the space available when fully open |
| Surface | Polished reference; black or other finish requests require a separate sample and process review |
| Kit and packaging | Paired grips, agreed fixing components, pack count and label language |
| MOQ / sampling / lead time | Reviewed by style, finish, quantity and packaging before order acceptance |
Sliding Shower Door Clearance Comes Before Appearance
For a sliding shower frameless glass door pull handle, the outside projection and position relative to the fixed panel affect how far the door can travel. Measure the available gap at the overlap, the planned handle height and the distance to the wall or frame. A handle that looks correct in a photograph may still conflict with another panel.
For a hinged shower door, check the full swing and nearby fittings. Glass drilling and mounting preparation must follow the approved glass and hardware drawing. The handle is an operating grip, not a grab bar or a support for body weight.
Finish Choices for Hotel and Bathroom Ranges
A hotel bathroom collection benefits from a consistent visible finish across handles, hinges and other accessories. Send the finish reference used by your customer, including any cleaning or exposure requirements. If the request is for an antique shower sliding glass door handle, specify the desired antique appearance and surface process rather than substituting a gold-tone photograph.
Build a sample board for your proposed range and record the selected finish by SKU. This gives distributors and installers a shared reference and can reduce disputes caused by different interpretations of polished, satin, black or antique.
Help Your Customer Install a Complete Set
Missing small components create disproportionate service costs. Define whether bolts, isolation sleeves, washers and tools are included, with component materials and quantities in the packing list. Review spare fixing packs separately for customers who support replacement and maintenance work.
For brands, a clear product label can include the model reference, approved hole spacing and the number of complete sets. For enclosure factories, the same information can be connected to the glass drawing revision. This makes incoming checks and repeat purchasing more reliable.
Sample Checks Before a Wholesale Order
- Confirm the door drawing, opening method and target finish.
- Approve a handle and fixing kit on a representative door preparation.
- Check hand clearance, opening travel and the fit of sleeves and collars.
- Agree inspection points for dimensions, appearance, kit completeness and packing.
- Record the approved sample identity and quote quantity by complete set.
Need a Different Handle Configuration?
- Coordinating straight-edged bathroom hardware? Compare square-profile handles.
- Replacing an existing enclosure handle? Review custom mounting centers.
- Matching black architectural fittings? Compare the matte black H-style range and check enclosure clearance.
View the full handle selection table for a side-by-side comparison.
Shower Door Handle FAQ
Can this rounded handle be specified for a hotel shower room?
Send the enclosure layout, glass preparation, required material and finish. Suitability is checked for the complete door arrangement rather than inferred from the hotel application alone.
Can the same handle be used on every sliding shower enclosure?
No. Overlap and clearance vary. Provide the available gap, handle projection limit and travel path for review.
Does SS304 mean maintenance-free or rust-proof?
No. Grade, finish, exposure and cleaning conditions all affect service behavior. Agree the material specification and any required inspection or test evidence for the actual project.
Can we build a mixed-finish wholesale assortment?
Send quantities by finish and packing format. MOQ and sample requirements are reviewed per configuration.
Develop Your Shower Handle Range
Send the enclosure drawing, door thickness, hole pitch, finish reference, complete-set quantity and destination. Request a sample and mounting-kit review before your wholesale order.
Technical Guides for Your Specification
- Measure mounting centers and glass-door clearance before selecting the length and fixing kit.
- Compare SS304 and SS316 for the installation environment before setting the material and finish schedule.
