A curved glass door pull handle adds a bow or wave-shaped grip to an office, hotel or commercial entrance collection. Qingdao Gleam Hardwares supports OEM specification review for brands and project buyers who want a distinctive visible shape while keeping the mounting interface and complete fixing kit clearly defined.
Compare all glass door pull handle styles and select the configuration for your project.
Common Sizes and Custom Options
These are made-to-order production options. Special lengths, mounting centers and profiles can be customised.
| Specification | Production options |
|---|---|
| Mounting centers (C-to-C) | 300, 400 or 450 mm |
| Round tube diameter | 25 or 32 mm |
| Bow / wave geometry | Overall length, bow depth and projection made to the selected profile drawing |
| Glass thickness | 8, 10 or 12 mm with the matching fixing kit |
Specify overall length and C-to-C separately. Confirm the selected length, mounting centers, glass holes and fixing kit together on the order drawing.
Bow and Wave Glass Door Handle Options
Choose the geometry before choosing a nominal length. A gentle bow and an S-shaped wave may have the same mounting centers but different clearances and visible alignment. Record the direction of the curve, total length and maximum projection from the door face, then compare the sample with other hardware on the door.
| Design option | Where to evaluate it | What must be checked |
|---|---|---|

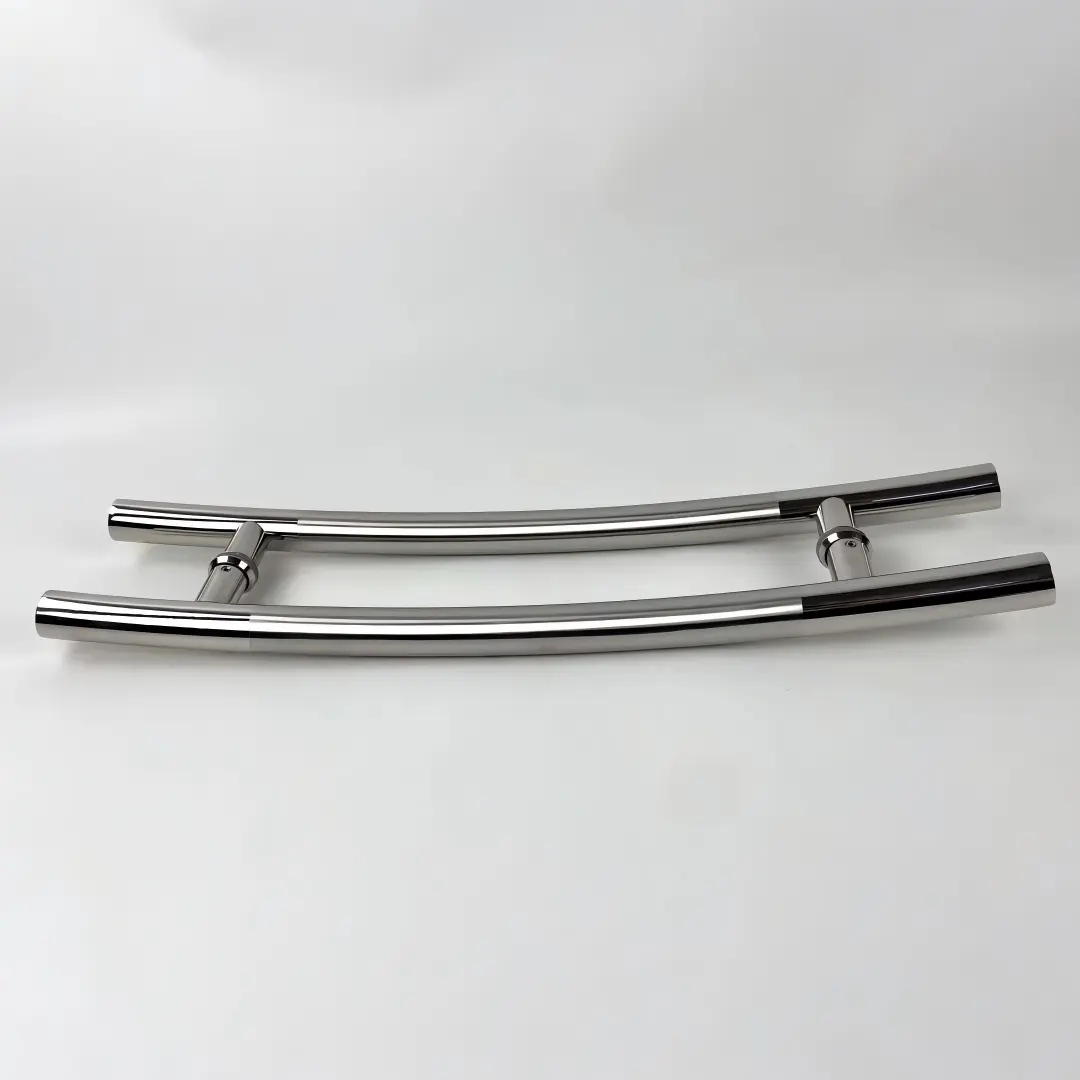

| Bow-curved round tube | Office entrance, hotel interior or feature glass door | Maximum projection, grip position and distance to adjacent fittings |

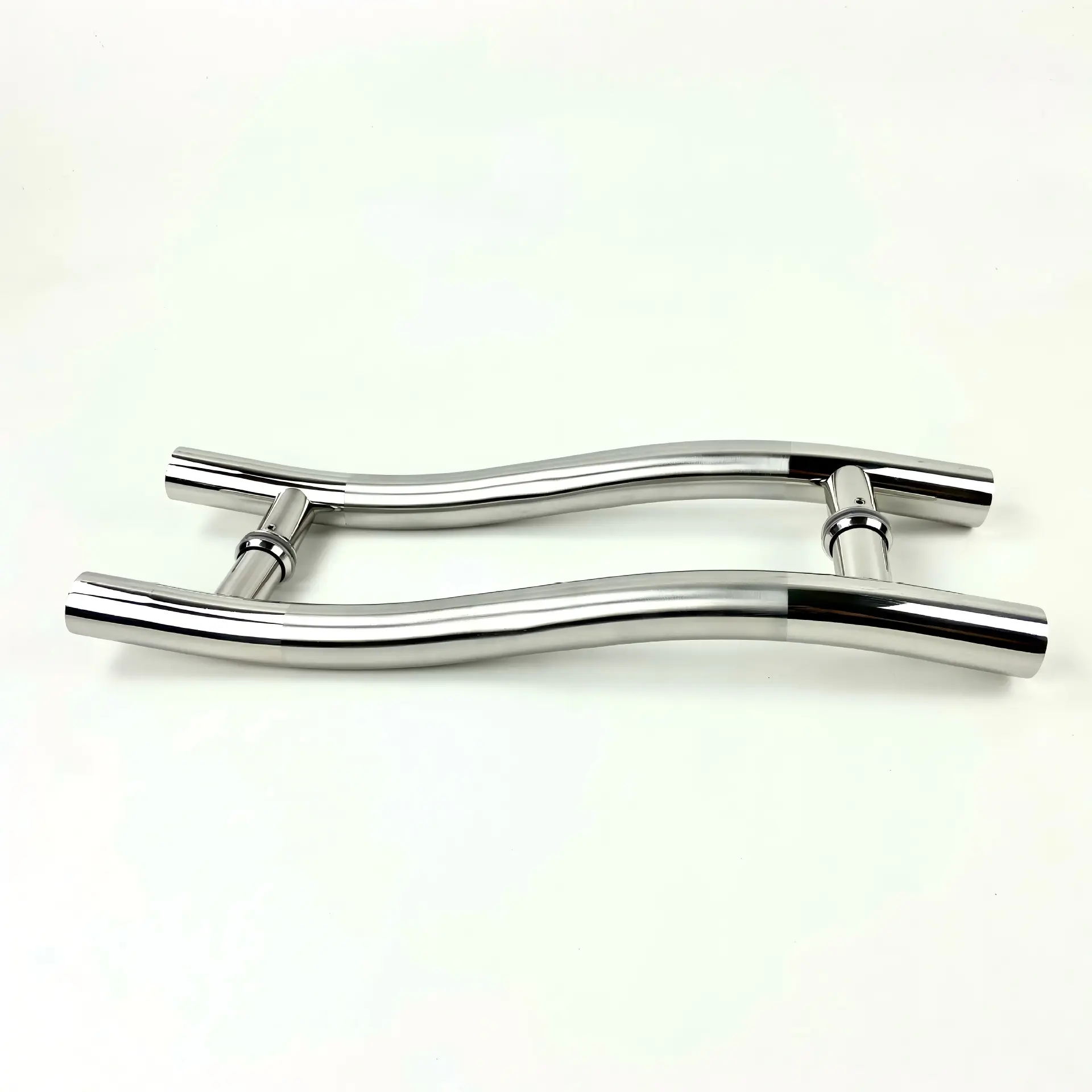

| Wave / S-shaped grip | Contemporary branded hardware collection | Curve orientation and appearance as a matched pair |

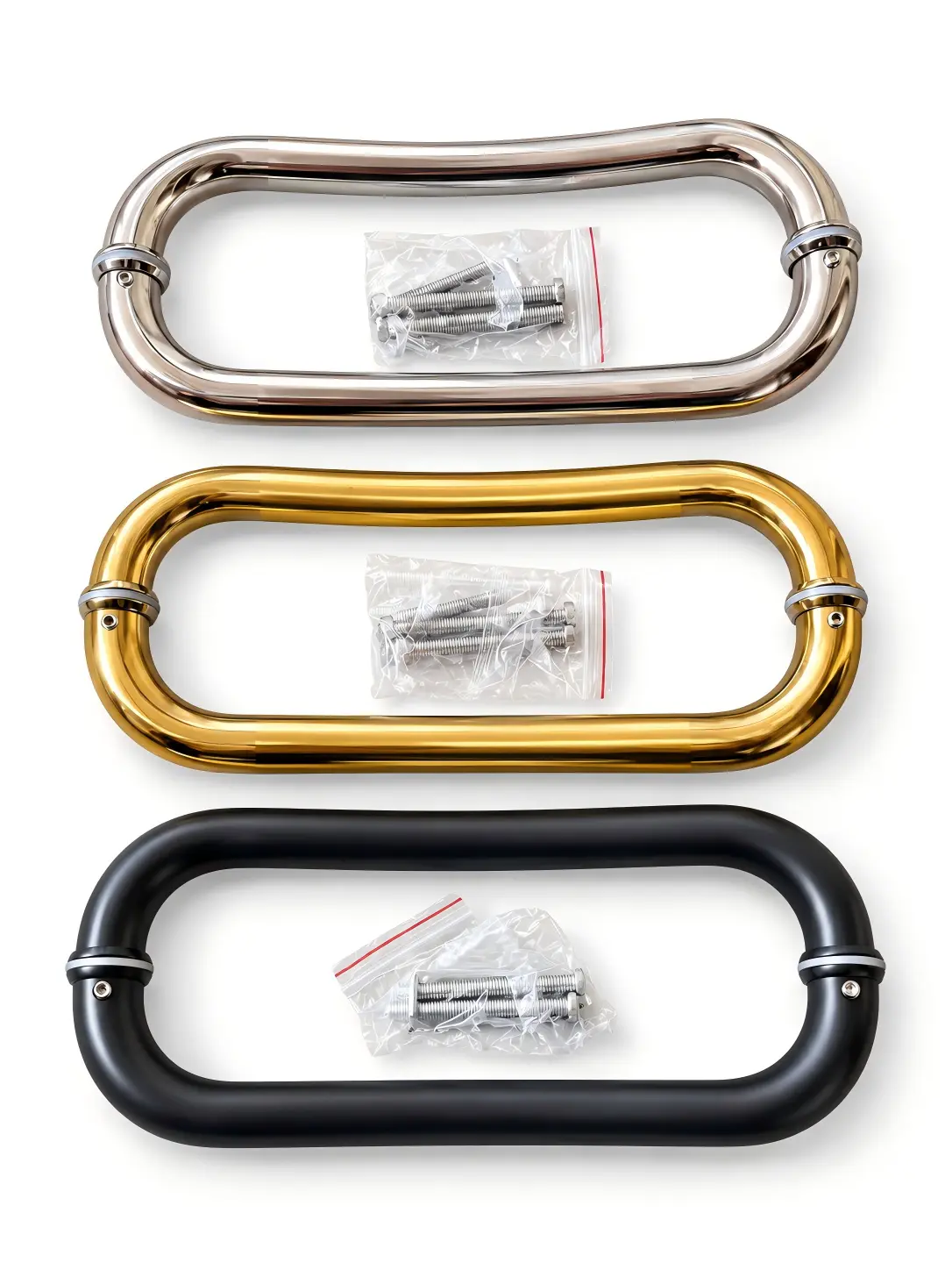

| Rounded D-style alternative | Compact shower or interior door program | Different length and clearance requirements; review as a separate model |
| Color or finish variation | Matching a coordinated project hardware set | Physical sample, surface process and order quantity by finish |
Curved Glass Door Pull Handle Specification
| Item | Requirement for OEM quotation |
|---|---|
| Profile and construction | Round tubular grip with the specified bow or wave geometry; diameter and wall thickness to be confirmed |
| Material | Requested stainless steel grade identified in the order specification |
| Overall length | End-to-end size, measured independently of the curved path and mounting centers |
| Mounting pitch | C-to-C hole spacing, hole diameter and mounting-post orientation |
| Clearance | Maximum projection, grip space and interference with walls, frames or adjacent panels |
| Surface | Polished reference; brushed satin, black or other finishes by approved sample review |
| Kit | Complete paired grips with the agreed bolts, sleeves, washers and collars |
| Wholesale supply | Quantity by style/finish, set packing, brand label and MOQ confirmed in quotation |
Commercial Office Glass Partition Door Pull Handle Bulk Orders
For an office fit-out contractor, a curved pull can create a consistent visual theme across reception and meeting-room doors. Use a door-reference schedule to connect each handle style with its hole pattern and finish. The bulk quotation should identify whether each line is an individual grip or a complete back-to-back set.
For a stainless steel pull and push handle for supermarket glass door applications, review the manual grip alongside the door’s other hardware and operating requirements. The curved handle does not provide an automatic-opening, locking or emergency-release function by itself. This keeps the quotation aligned with what the installer actually needs.
Differentiate the Range Without Making Stock Harder to Manage
A brand can distinguish a curved collection through the shape and finish while retaining a controlled set of approved sizes. Start with the door systems your customers use, then quote the variants that fit those interfaces. Too many visually similar options can make picking and replenishment harder; a recorded curve and dimension revision helps keep each SKU identifiable.
Agree the packing so paired grips stay together and polished surfaces cannot rub against loose fixing parts. If multiple project phases need the same appearance, retain the approved finish and shape samples and quote repeat batches by that reference.
Sample and Inspection Review
- Check the curve and mounting-post locations against the agreed drawing or approved sample.
- Measure overall length, C-to-C distance and maximum projection.
- Compare paired handles for alignment and surface appearance.
- Test fit on the representative door preparation and check opening clearance.
- Verify mounting-kit completeness, protective packing and labels.
Need a Different Handle Configuration?
- Prefer a straight grip for the same project? Compare ladder pull handles.
- Need to retain the existing mounting holes? Review custom hole-pitch handles.
- Want a geometric profile? See the square tube alternative.
View the full handle selection table for a side-by-side comparison.
Curved Pull Handle FAQ
Can the curve be customized?
Send a dimensioned drawing or physical sample with the intended quantity. Geometry, tooling and sample requirements are reviewed before confirming feasibility.
Is a curved handle suitable for a sliding door?
It depends on the available clearance and travel path. Submit the panel overlap and projection limit for review.
Can we combine bow and wave designs in one wholesale order?
Send quantities by design, finish and size. Quote and label each configuration separately; MOQ and packing are reviewed by item.
Are the two pictured curves interchangeable?
No assumption should be made from the pictures. Compare hole spacing, projection and the actual mounting components on the approved drawings.
Develop a Curved Handle Collection
Share the bow or wave reference, mounting drawing, finish, complete-set quantity and destination. Request an OEM sample review and itemized wholesale quotation.
Technical Guides for Your Specification
- Measure mounting centers and glass-door clearance before selecting the length and fixing kit.
- Compare SS304 and SS316 for the installation environment before setting the material and finish schedule.
