Pilates reformer rope pulley wheels guide the cord through a controlled path and should be specified by groove, hub, bore or bearing, rope diameter and mounting angle. Qingdao Gleam Hardwares develops custom grooved pulley wheels for Pilates and other sports-equipment manufacturers, parts importers and repair networks.

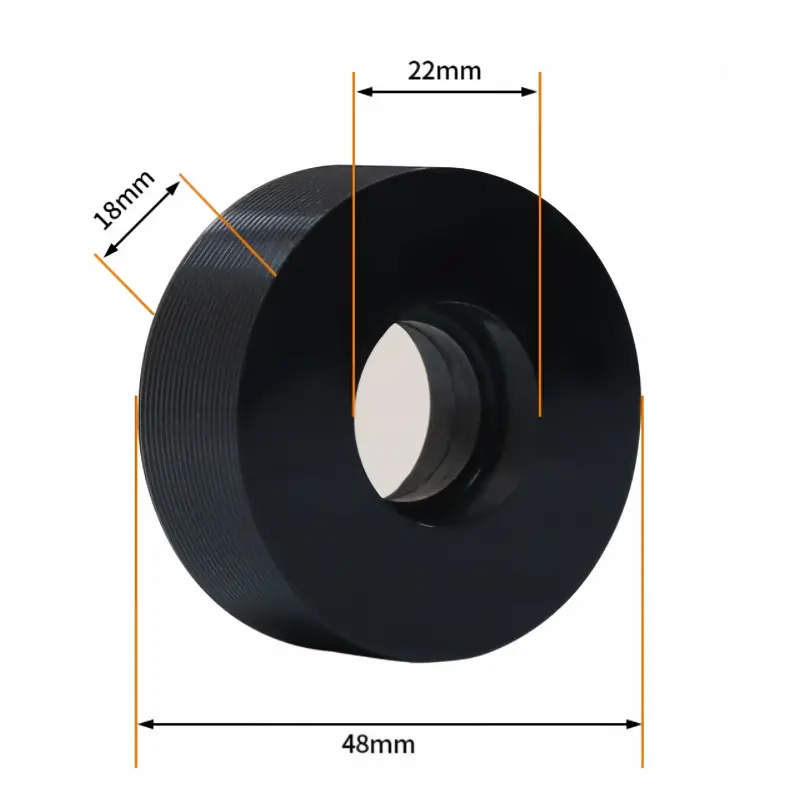

The pictured reference is approximately 48 mm outside diameter and 18 mm wheel width, with an indicated 22 mm hub span. These measurements illustrate the information needed for an enquiry; they are not a universal reformer pulley standard.
Custom Grooved Pulley Wheel Specification Table
| Specification | Pictured/common reference | Custom options |
|---|---|---|
| Outside diameter | Approximately 48 mm pictured reference | Other diameters from drawing or sample |
| Wheel width | Approximately 18 mm pictured reference | Width to match bracket and rope path |
| Hub span | Approximately 22 mm indicated reference | Flush, offset or extended hub geometry |
| Groove | Rounded rope-guiding profile | Groove radius, depth and side angle to rope diameter |
| Material | Engineering plastic reference | PU, POM/engineering plastic or metal-supported construction |
| Rotation | Plain bore, bushing or bearing option | Axle, bearing, spacer and fastener stack |
| Preliminary working-line reference | 30–60 kg for early project discussion | Final working load, safety factor and test depend on assembly and application |
Groove Geometry Matters More Than a Generic Pulley Name
The groove should support the rope without pinching it, forcing excessive bend or allowing it to climb the flange. Provide rope material, nominal diameter, jacket construction, approach angle and expected travel. For a retrofit part, photograph the rope entering and leaving the pulley and measure the bracket spacing.
A narrow or sharp groove can accelerate rope wear. An oversized groove can permit wandering and noise. The wheel outside diameter also influences rope bend and required clearance. These features should be reviewed as one geometry.
Plastic, PU and Bearing Choices
Engineering plastic offers a rigid, lightweight option for many guide-wheel and pulley positions. PU can be considered when additional compliance or surface grip is useful. A metal insert or bearing may support higher duty or improve rotational consistency, but it adds cost and changes the hub design.
Plain-bore pulleys require a suitable pin and bushing relationship. Bearing pulleys require the exact bearing seat, axle, spacer and side clearance. The buyer should state whether the pulley is fixed in a bracket, mounted on a swivel eye or used as part of a larger rope assembly.
Create a Profitable OEM Pulley and Repair Line
- Offer model-specific pulley kits with the correct fastener and installation orientation.
- Use a dimension graphic and rope-size label to reduce selection mistakes.
- Develop a branded service pack for studios, repair partners and equipment distributors.
- Combine approved carriage wheels and rope pulleys in one replacement-parts catalogue.
Sample and Batch Approval
Measure outside diameter, width, hub span, groove radius/depth, bore or bearing seat and installed clearance. Trial the part with the intended rope, load and movement angle. Inspect rotation, rope tracking, visible wear, noise and fastener security. For a custom mold, freeze the approved drawing and master sample before volume production.
