Silent Pilates reformer bearing wheels are designed for equipment factories and replacement-parts buyers that want a smooth carriage system with controlled bearing fit, concentricity and rail contact. Silence is an assembly result—not a label on one wheel—so our review covers the PU roller, bearing, spacer, axle, lateral guide and rail condition together.

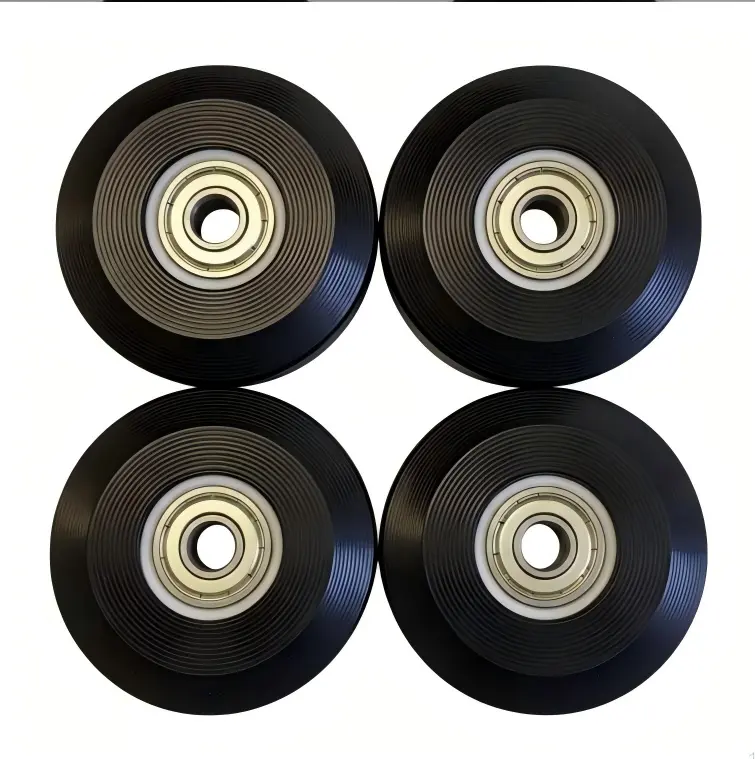

The photographed wheel uses a 608ZZ-style bearing reference. For B2B orders, Qingdao Gleam Hardwares can review shielded or sealed bearing options, bearing-installed wheels and complete replacement kits after the machine dimensions and service target are confirmed.
Bearing Wheel and Noise-Control Specification
| Item | Common reference | Why it matters |
|---|---|---|
| Bearing family | 608ZZ or 608-2RS; 8 × 22 × 7 mm reference | Must match axle, spacer, shield/seal and installation stack |
| Wheel diameter | 52 / 57 / 58 / 59 / 72 mm project references | Changes carriage height, rail contact and frame clearance |
| Wheel width | 18–24 mm reference | Controls contact area and lateral clearance |
| PU hardness | 85A / 90A / 92A options | Affects compliance; does not alone determine sound |
| Core | Reinforced polymer or metal | Supports the bearing seat and tread under load |
| Preliminary load | 50–100 kg per wheel | Final rating depends on wheel count, distribution and complete assembly |
| Noise acceptance | Buyer-defined speed, load, distance and background | Avoids an unverifiable universal dB claim |
608ZZ, 608-2RS and Custom Bearing Options
A 608 bearing has a common 8 mm bore, 22 mm outside diameter and 7 mm width, but the suffix and internal specification still matter. Metal shields (ZZ) help exclude larger debris with low seal contact. Rubber seals (2RS) can offer stronger contamination protection but may add drag. Bearing clearance, grease, precision class and supplier are selected for the required cost and duty.
Do not add an ABEC claim merely because the wheel is intended to feel smooth. If a precision class is required, it must be part of the approved bearing specification and purchasing record. For many low-speed reformer systems, correct fit, cleanliness, lubrication selection and alignment have more practical influence than an unsupported high ABEC label.
Fixed, Floating and Lateral Wheel Positions
Some carriage designs distinguish rolling wheels, fixed rollers, floating rollers and side wheels. A floating position may accommodate small alignment variation, while a lateral guide can control side play. The terms vary by manufacturer, so mark every position on a photo and provide the axle and bracket geometry.
A tight side wheel can create drag and sound; a loose guide can allow knocking or carriage movement. The wheel quotation should therefore identify both part dimensions and installation function.
Why Detailed Bearing Kits Sell Better
- A wheel-plus-bearing SKU gives importers a complete, easier-to-explain service item.
- Model labels and installation-stack details reduce technician guesswork and returns.
- Clean packing protects bearing surfaces and supports a professional private-label range.
- A documented inspection routine helps service partners isolate rail, bearing and alignment issues.
Batch Inspection and Packing
Inspection can cover wheel diameter, width, hardness, hub geometry, bearing seating, axial play, rotation, visible runout, surface finish and pack count. Bearings should be protected from dust and moisture during packing. If the buyer wants spacers, bolts or washers in the kit, each component and material must be listed on the approved bill of materials.
Related Pilates Wheel Solutions and Guides
- OEM Pilates reformer wheels
- 52mm replacement wheel kits
- 58mm metal-core carriage wheels
- custom reformer rope pulley wheel
- wheel noise and flat-spot diagnostic guide
- Pilates wheels and pulleys product hub
Frequently Asked Questions
Does a 608 bearing guarantee the wheel will fit?
No. Confirm wheel diameter, width, hub/stack, axle shoulder, spacer and rail clearance as well as the bearing size.
Which is quieter, 608ZZ or 608-2RS?
Noise depends on bearing quality, seal drag, grease, fit, alignment, wheel material and rail condition. Compare complete installed samples.
Can you guarantee operation below 30 dB?
A decibel value requires an agreed test environment, speed, load, measuring distance and background level. We do not apply a universal number without that test.
Can you supply fixed and floating rollers?
Different position-specific constructions can be reviewed when the buyer provides the original samples, mounting drawings and required quantities.
Build a Model-Specific Bearing Wheel Kit
Send the wheel and bearing samples, axle/spacer drawing, wheel-position photo, noise concern, annual quantity and packaging format. We will prepare a fit-based OEM review.
