Non-Standard Deep Groove Ball Bearings for Door and Window Systems

Non-standard deep groove ball bearings for door and window systems, developed from your drawing or sample.

  • Special bore, outside diameter, width and ring features reviewed for the mounting arrangement.
  • Material, closure, lubrication and inspection requirements defined for the application.
  • Send the bearing and mating-part dimensions, quantity and packing requirements for an OEM quotation.
Get Bulk Price and Sample OptionsSpecify model, quantity and application. Ask about sample and packing options.

EXW unit price

USD 0.06 / pc

Price is per bearing. Send your sample or drawing, required dimensions and order quantity to confirm the custom specification and quotation.

Confirm specification, order quantity and packaging in your inquiry. Freight and import charges are not included.

Non-Standard Bearings for Door and Window Hardware

Qingdao Gleam Hardwares supplies made-to-order deep groove ball bearings for door and window systems when a standard catalogue bearing does not match the shaft, housing, available width or locating arrangement. Send the bearing drawing or sample and mating dimensions for a project-specific feasibility review and OEM quotation.

This page focuses on the bearing core and its ring geometry. A plastic-coated wheel, pressed housing, bracket or complete track roller requires additional finished-component dimensions. State exactly which parts are included in the requested supply.

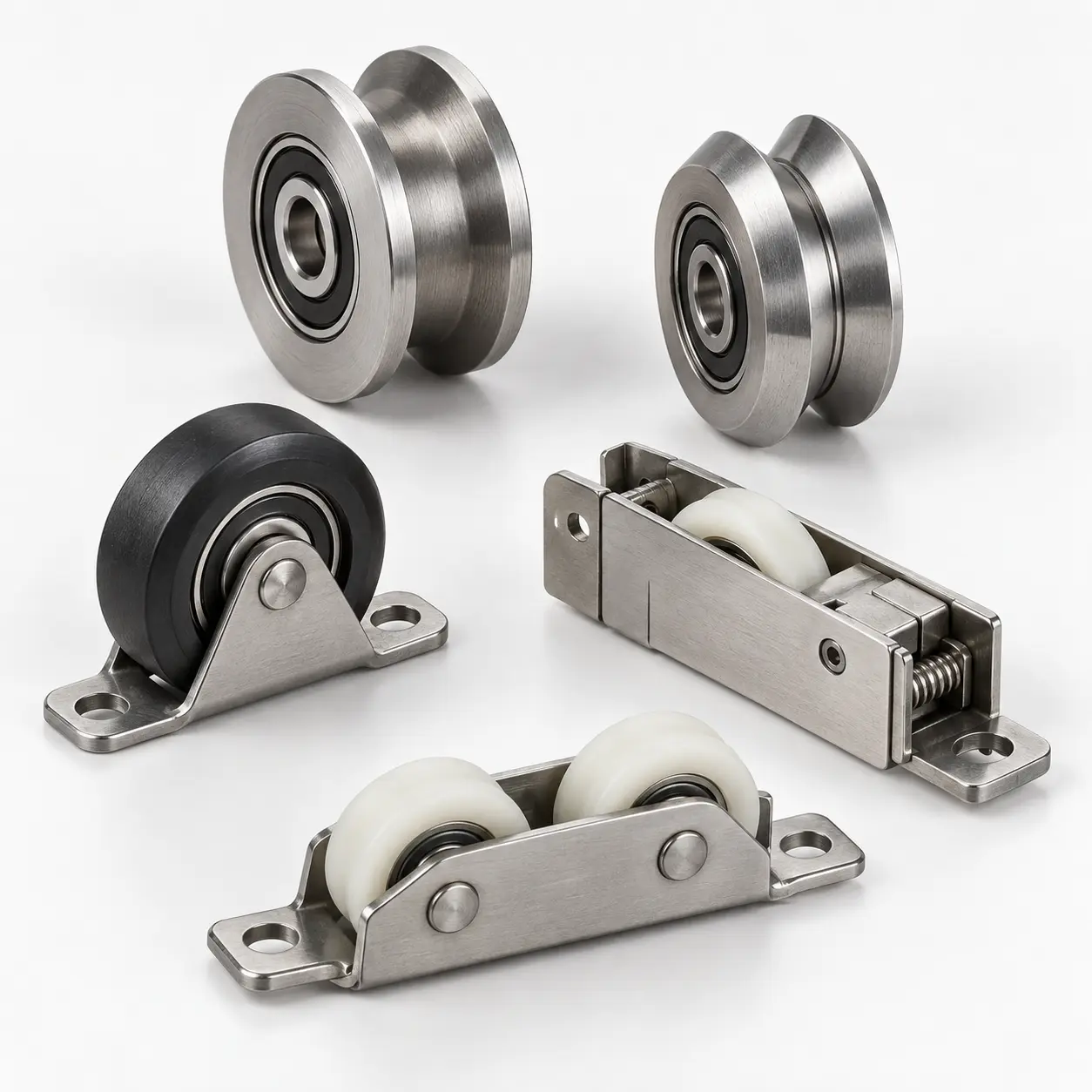

flanged and extended hub roller bearings for door and window hardware

Profiled bearing and roller reference. The approved drawing defines whether the ordered component is a bare bearing or an assembled roller.

Define the Bearing Envelope and Locating Features

Specification Information needed for quotation
Bore d and shaft Nominal bore, tolerance, shaft diameter and any sleeve requirement
Outside diameter D and housing Bearing OD, tolerance and mating housing or wheel seat
Width B and available space Ring widths, total envelope and axial clearance
Ring features Flange, shoulder, extended inner ring or retention feature shown on a section drawing
Closure and lubrication Open, shielded or sealed arrangement; exposure, operating temperature and rotation requirements
Material and acceptance Material grade, required tolerance, inspection points and approved sample
Programme quantity Sample quantity, trial order, repeat demand and packing or marking requirements

When Does a Door System Need a Custom Bearing?

Typical enquiries involve an obsolete replacement, restricted housing width, a special shaft interface or a locating feature that cannot be resolved with a standard bearing and spacer. If standard dimensions fit the design, compare our 608ZZ wholesale bearing or 625ZZ bearing for compact pulleys before starting custom development.

A groove or polymer tyre on a finished wheel does not by itself change the internal bearing code. For those projects, use the custom plastic bearing roller page and include the finished OD, total width, groove and track section.

Drawing or Sample to Approved Production Specification

  1. Send the bearing sample or section drawing with shaft, housing and installation photos.
  2. Define the essential dimensions, material, closure, lubricant and working conditions.
  3. Review manufacturing feasibility, tooling where required, order quantity and sampling arrangements.
  4. Approve the sample in the actual door or window mechanism and agree the inspection method.
  5. Retain the controlled drawing, approved sample, marking and packing specification for repeat orders.

For a complete RFQ, use the door and window bearing sample-to-drawing guide. For load, speed, clearance and lubricant requirements, review our custom deep groove bearing specification checklist.

Material, Packing and Inspection for B2B Orders

Specify the actual exposure, load, movement cycle and material requirement rather than relying on a universal high-speed or heavy-duty label. The quotation identifies the supplied configuration and any agreed tests. Packing quantities, batch labels and protection are defined for the approved bearing and shipment.

Compare the three procurement routes in our custom and non-standard bearing range, or browse the standard miniature bearing bulk supply range.

Non-Standard Door and Window Bearing FAQ

Can a custom bearing be quoted from a photograph?

A photograph helps identify the part. Measured dimensions, a controlled drawing or a physical sample are normally needed to define fit, material and the supply scope.

Can you make non-standard dimensions based on a 608 bearing?

Non-standard 608-based dimensions can be reviewed from a drawing or sample. State bore, OD and width separately; the standard 608 reference size is 8 × 22 × 7 mm.

Does the bearing code define the complete door roller?

No. Finished wheel diameter, groove, flange, hub, axle and bracket interfaces must be specified separately from the bearing core.

Request a Non-Standard Door Bearing Review

Send your drawing or sample photos, bore × OD × width, ring features, application and expected quantity. Standard free sample options and project-specific sampling arrangements can be discussed with the specification.

Send Drawing Details and Request an OEM Quote
